hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy

Bob Gaines

Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
Bob Gaines,Shelby Enthusiast, Shelby Collector , Shelby Concours judge SAAC,MCA,Mid America Shelby

J_Speegle

#2

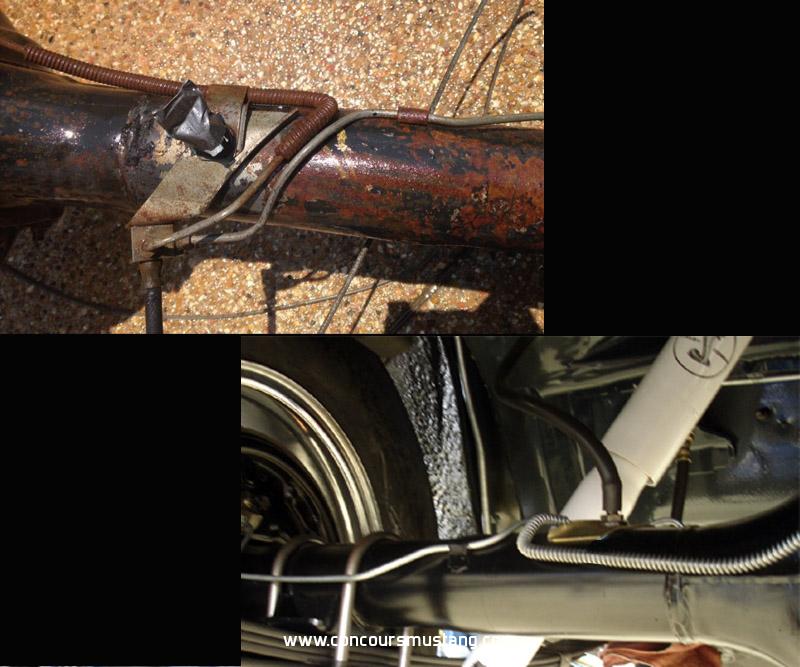

Hope these help. No measurements but at least the pictures show other "landmarks" you can use to compare the location of the vent hole to. Just a few inches from the center to the tube weld on the drivers side. Brake line strap was left off at the time when the lower right picture was taken for those looking at other details  ;)

Jeff Speegle- Mustang & Shelby detail collector, ConcoursMustang.com mentor :) and Judge

imming1965

Quote from: Bob Gaines on September 05, 2023, 05:39:06 PM
Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
thank you

imming1965

Quote from: J_Speegle on September 05, 2023, 06:59:01 PM
Hope these help. No measurements but at least the pictures show other "landmarks" you can use to compare the location of the vent hole to. Just a few inches from the center to the tube weld on the drivers side. Brake line strap was left off at the time when the lower right picture was taken for those looking at other details  ;)


thanks jeff that will help for sure my friend

shelbymann1970

Quote from: Bob Gaines on September 05, 2023, 05:39:06 PM
Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
Bob is it all BB cars or just staggered shock cars?
Shelby owner since 1984
SAAC member since 1990
1970 GT350 4 speed(owned since 1985).
  MCA gold 2003(not anymore)
1969 Mach1 428SCJ 4 speed R-code (owned since 2013)
"2nd" owner of 68 GT500 #1626

430dragpack

#6
Jeremy,
Here is another angle of a '69 GT 350 brake hose and axle vent for reference.
Chris

Shelbypat

#7
Anybody has an explanation why vent is located at a different place on BB's ?

Patrick

J_Speegle

#8
Quote from: Shelbypat on September 12, 2023, 07:07:03 PM
Anybody has an explanation why vent is located at a different place on BB's ?

Patrick

My guess is that saves money since it minimized the number of parts compared to the big block applications with the two holes and they didn't have to drill and thread a second hole.
Jeff Speegle- Mustang & Shelby detail collector, ConcoursMustang.com mentor :) and Judge

shelbymann1970

Quote from: Shelbypat on September 12, 2023, 07:07:03 PM
Anybody has an explanation why vent is located at a different place on BB's ?

Patrick
I always thought it was for staggered shock cars and the different placement of the staggered shock. I'd have to further into my 2 cars as I have both factory rears in my GT350 vert and my 4 speed staggered shock drag pack Mach1.
Shelby owner since 1984
SAAC member since 1990
1970 GT350 4 speed(owned since 1985).
  MCA gold 2003(not anymore)
1969 Mach1 428SCJ 4 speed R-code (owned since 2013)
"2nd" owner of 68 GT500 #1626

Shelbypat

Quote from: shelbymann1970 on September 13, 2023, 09:42:35 AM
Quote from: Shelbypat on September 12, 2023, 07:07:03 PM
Anybody has an explanation why vent is located at a different place on BB's ?

Patrick
I always thought it was for staggered shock cars and the different placement of the staggered shock. I'd have to further into my 2 cars as I have both factory rears in my GT350 vert and my 4 speed staggered shock drag pack Mach1.
Mine is automatique BB car with factory rear end and it have 2 holes.So no staggered. I have thought the reason was bigger exhaust but in a previous discussion others mention that it is same size a this section of the exhaust system...

Patrick

shelbymann1970

Quote from: Shelbypat on September 13, 2023, 10:13:47 AM
Quote from: shelbymann1970 on September 13, 2023, 09:42:35 AM
Quote from: Shelbypat on September 12, 2023, 07:07:03 PM
Anybody has an explanation why vent is located at a different place on BB's ?

Patrick
I always thought it was for staggered shock cars and the different placement of the staggered shock. I'd have to further into my 2 cars as I have both factory rears in my GT350 vert and my 4 speed staggered shock drag pack Mach1.
Mine is automatique BB car with factory rear end and it have 2 holes.So no staggered. I have thought the reason was bigger exhaust but in a previous discussion others mention that it is same size a this section of the exhaust system...

Patrick
The only thing I have seen different is the shock location so vent tube moved. Now IIRC the last BB 4 speed car I did had a separate hole (see second pic). Like I said I have both types of cars in my garage and just need to look at my 428 car better. Here is the factory setup on my 351W Gt350 I took about 24 years ago during resto. I do recall putting 2 green location stripes on rear ends before. Second pic is a staggered shock correct car(Bob Perkins B9)
Shelby owner since 1984
SAAC member since 1990
1970 GT350 4 speed(owned since 1985).
  MCA gold 2003(not anymore)
1969 Mach1 428SCJ 4 speed R-code (owned since 2013)
"2nd" owner of 68 GT500 #1626

Bob Gaines

Quote from: shelbymann1970 on September 07, 2023, 03:50:49 PM
Quote from: Bob Gaines on September 05, 2023, 05:39:06 PM
Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
Bob is it all BB cars or just staggered shock cars?
BB auto and 4 speed both.
Bob Gaines,Shelby Enthusiast, Shelby Collector , Shelby Concours judge SAAC,MCA,Mid America Shelby

shelbymann1970

Quote from: Bob Gaines on September 13, 2023, 11:31:49 AM
Quote from: shelbymann1970 on September 07, 2023, 03:50:49 PM
Quote from: Bob Gaines on September 05, 2023, 05:39:06 PM
Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
Bob is it all BB cars or just staggered shock cars?
BB auto and 4 speed both.
Can't figure out on commonality on all of this other than the shock. Why should a BB auto with the same rear and shock arrangement as a SB car have a moved vent hole?
Shelby owner since 1984
SAAC member since 1990
1970 GT350 4 speed(owned since 1985).
  MCA gold 2003(not anymore)
1969 Mach1 428SCJ 4 speed R-code (owned since 2013)
"2nd" owner of 68 GT500 #1626

Bob Gaines

Quote from: shelbymann1970 on September 13, 2023, 11:52:39 AM
Quote from: Bob Gaines on September 13, 2023, 11:31:49 AM
Quote from: shelbymann1970 on September 07, 2023, 03:50:49 PM
Quote from: Bob Gaines on September 05, 2023, 05:39:06 PM
Quote from: imming1965 on September 05, 2023, 04:38:21 PM
hey I'm looking for pictures and measurements on the location of rear end vent, The 1969 gt350, I'm restoring didn't have rear end, I picked one up but was told it was from a big block car and they were different from small block??? so I need location of vent if this is true so I can relocate it. thanks Jeremy
BB 69/70 housings had 2 holes not one. They are hard to find.  If it has one then you are good to go for the 69 GT350.
Bob is it all BB cars or just staggered shock cars?
BB auto and 4 speed both.
Can't figure out on commonality on all of this other than the shock. Why should a BB auto with the same rear and shock arrangement as a SB car have a moved vent hole?
Gary it might be the answer is just above our pay grade. ;) It may be as simple as for less confusion when assembling the sub assembly that have nodular rear,31 spline axles etc. used in BB Mustang compared to a 69/70 SB. As spec Ed likes to say "that's just the way it is".
Bob Gaines,Shelby Enthusiast, Shelby Collector , Shelby Concours judge SAAC,MCA,Mid America Shelby
